15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT : S11881

Return to Catalog

Part Number: S11881 / Vendor ID #: 27

15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT

by Satco Products Inc.

$47.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer availability unknown.

Dimensions

Height: 2.17"

Width: 7.48"

Product Overview

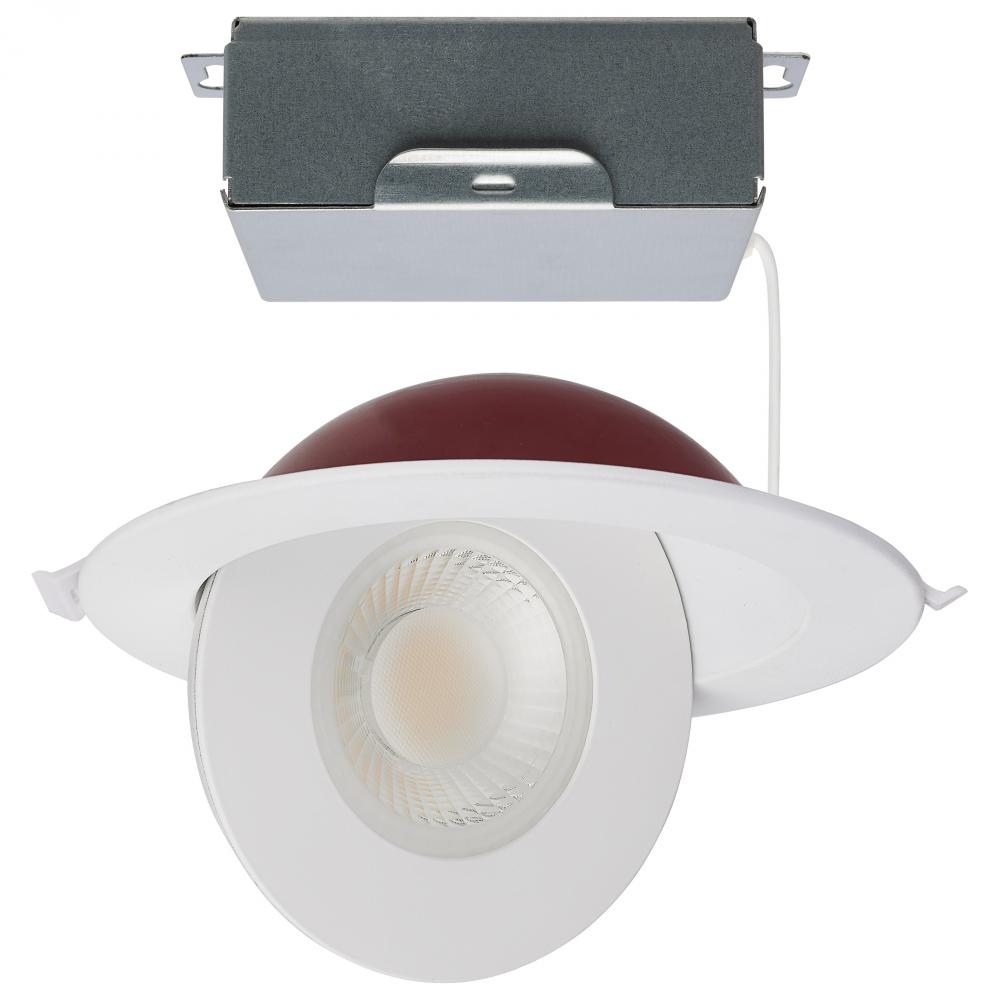

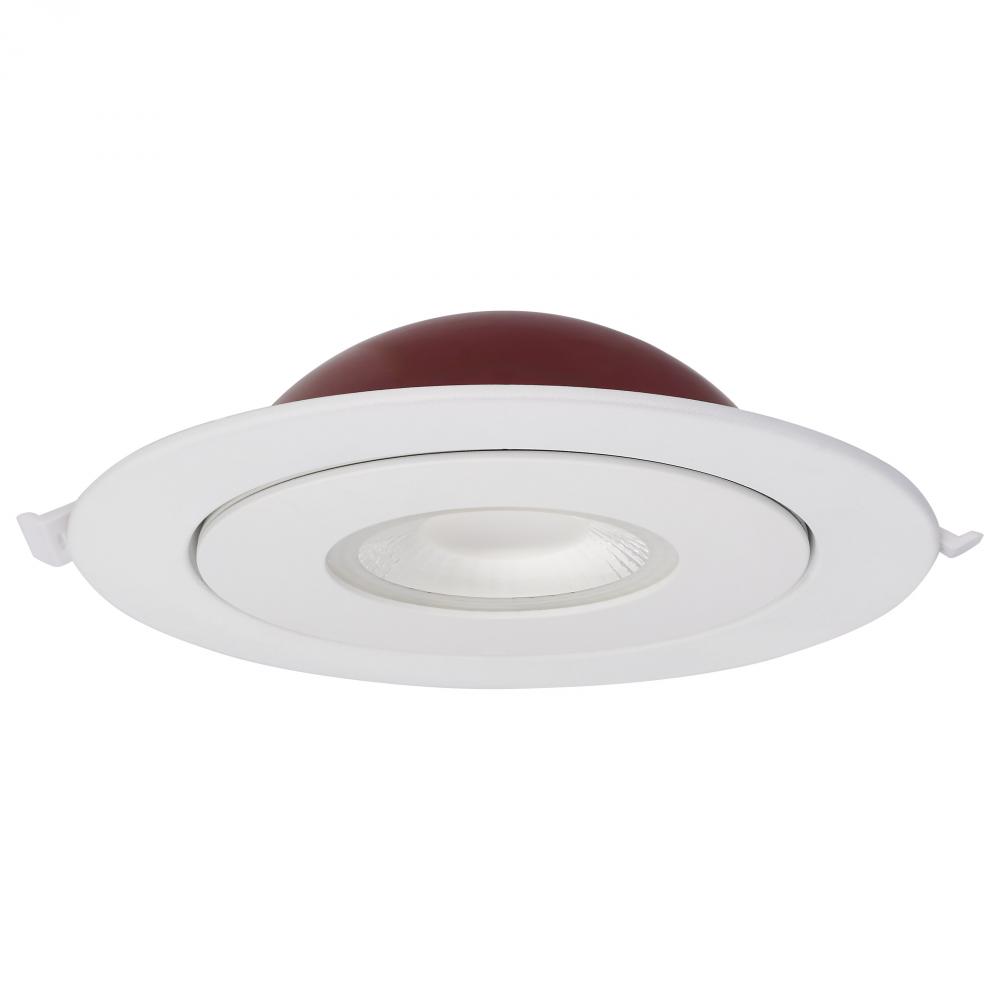

15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT Selectable; Dimmable; 120 Volts

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Additional Info:

2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07

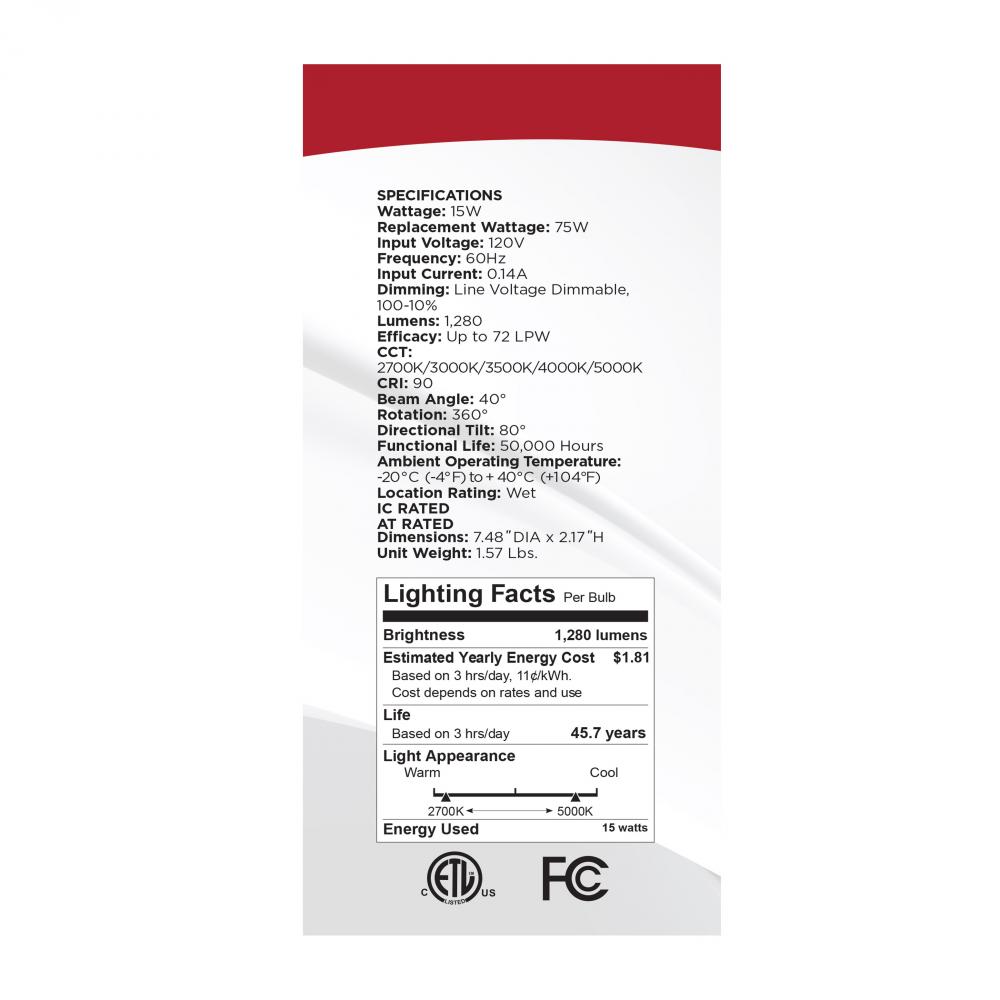

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

7.48

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

1280L

Ship Carton Height:

8.27

Ship Carton Length:

8.19

Ship Carton Width:

3.94

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.14A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

CA Prop-65:

Lead

Can Size:

6 in.

Carton Cubic Feet:

0.1544

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

6.313 in. Cutout

Clearance Height:

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Triac

Efficacy:

85.33 LPW

FCC Compliant:

Yes

Feature 1:

2-Hour Fire Rated

Feature 10:

IC Rated

Feature 2:

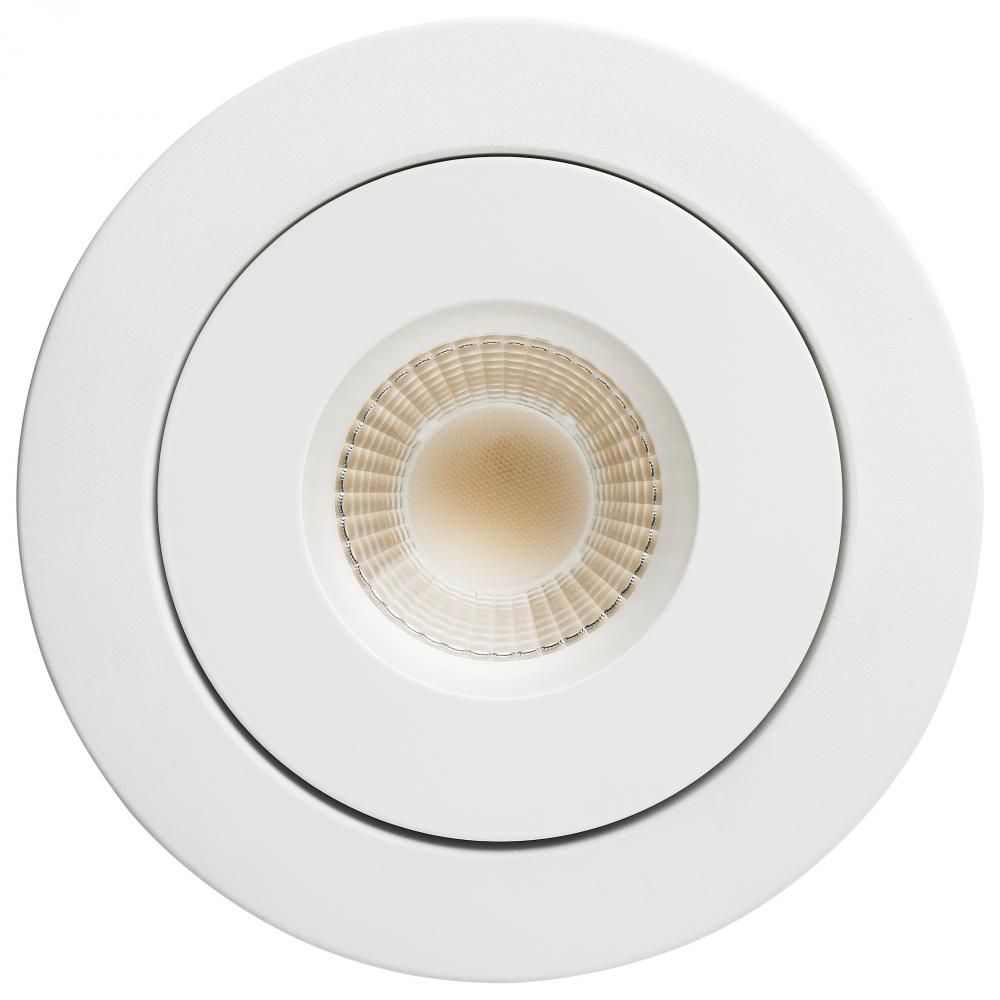

6-inch Round

Feature 3:

Dimmable

Feature 4:

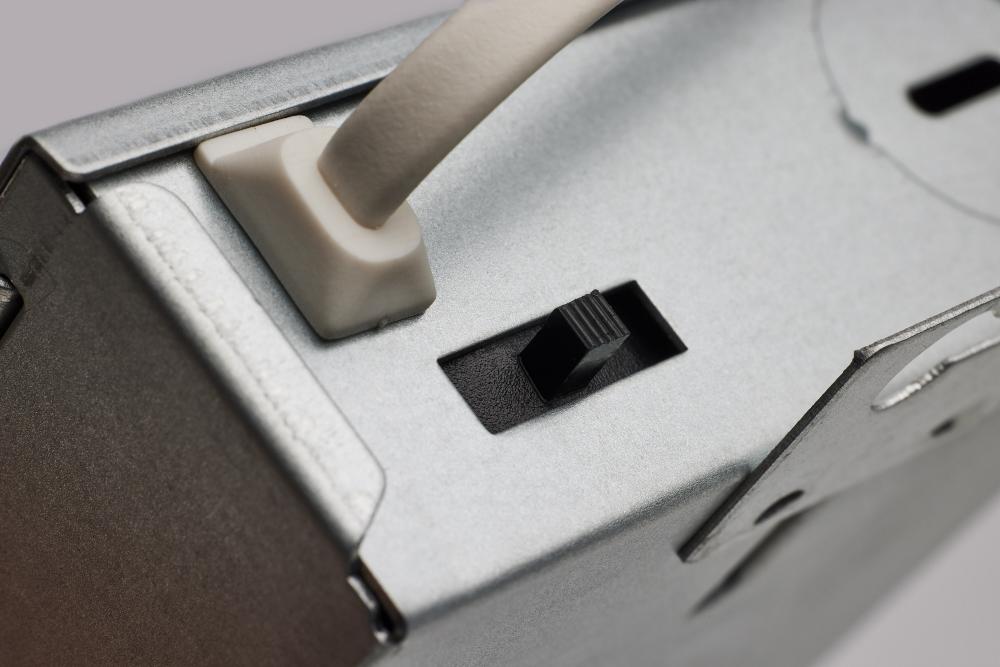

CCT Selectable

Feature 5:

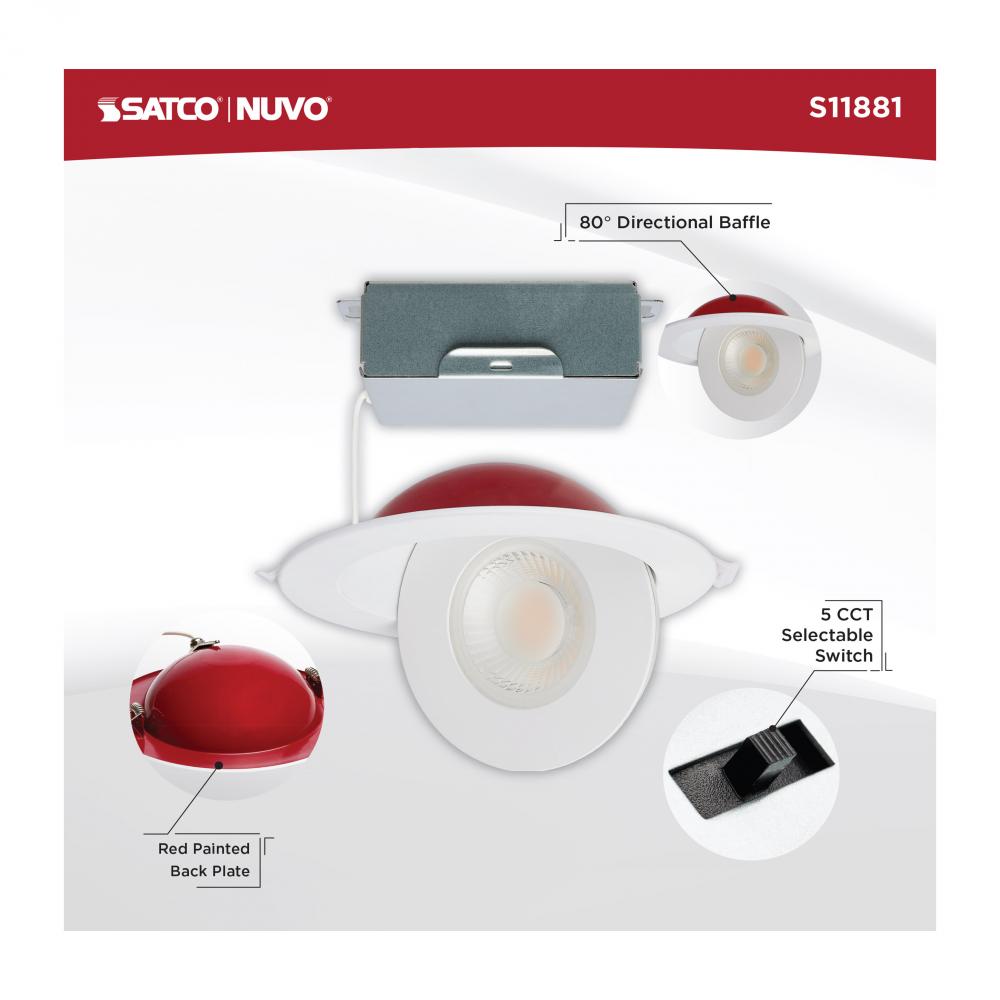

360-Degree Rotation; 80-Degree Tilt

Feature 6:

White Trim

Feature 7:

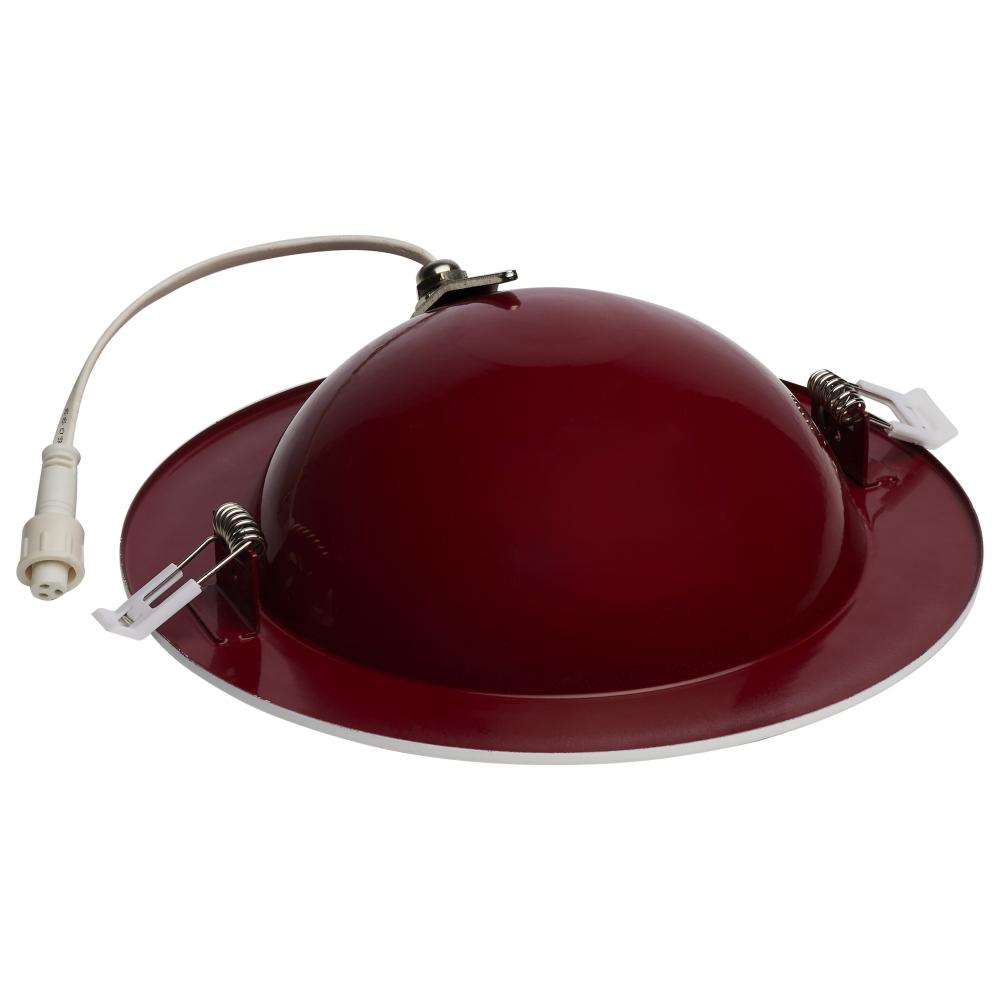

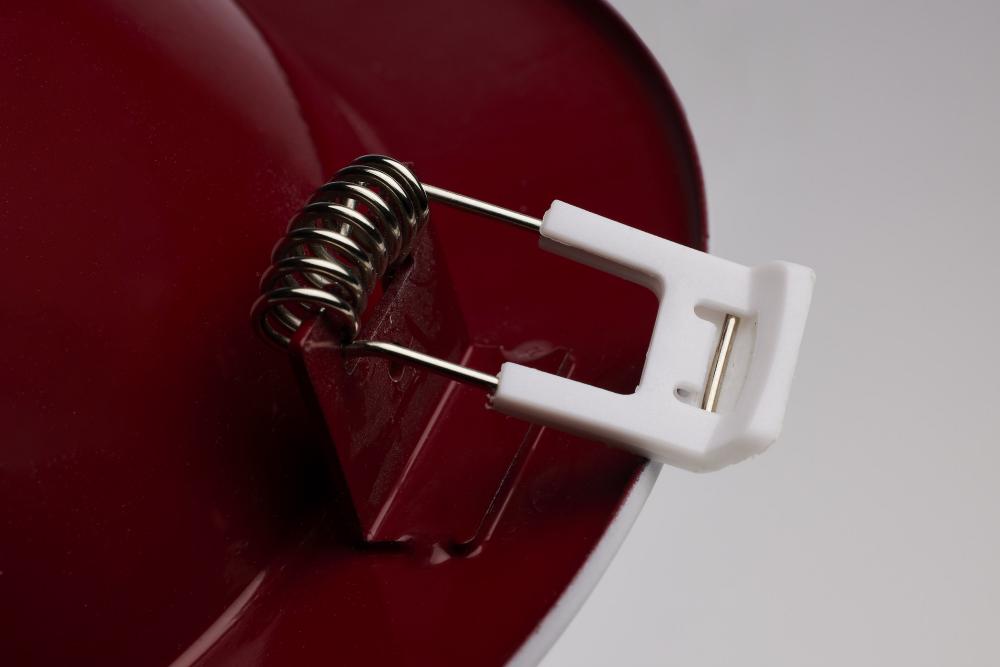

Red Painted Back Plate

Feature 8:

Wet Location Rated

Feature 9:

90 CRI

Finish Family:

White

Fixture shape:

Round

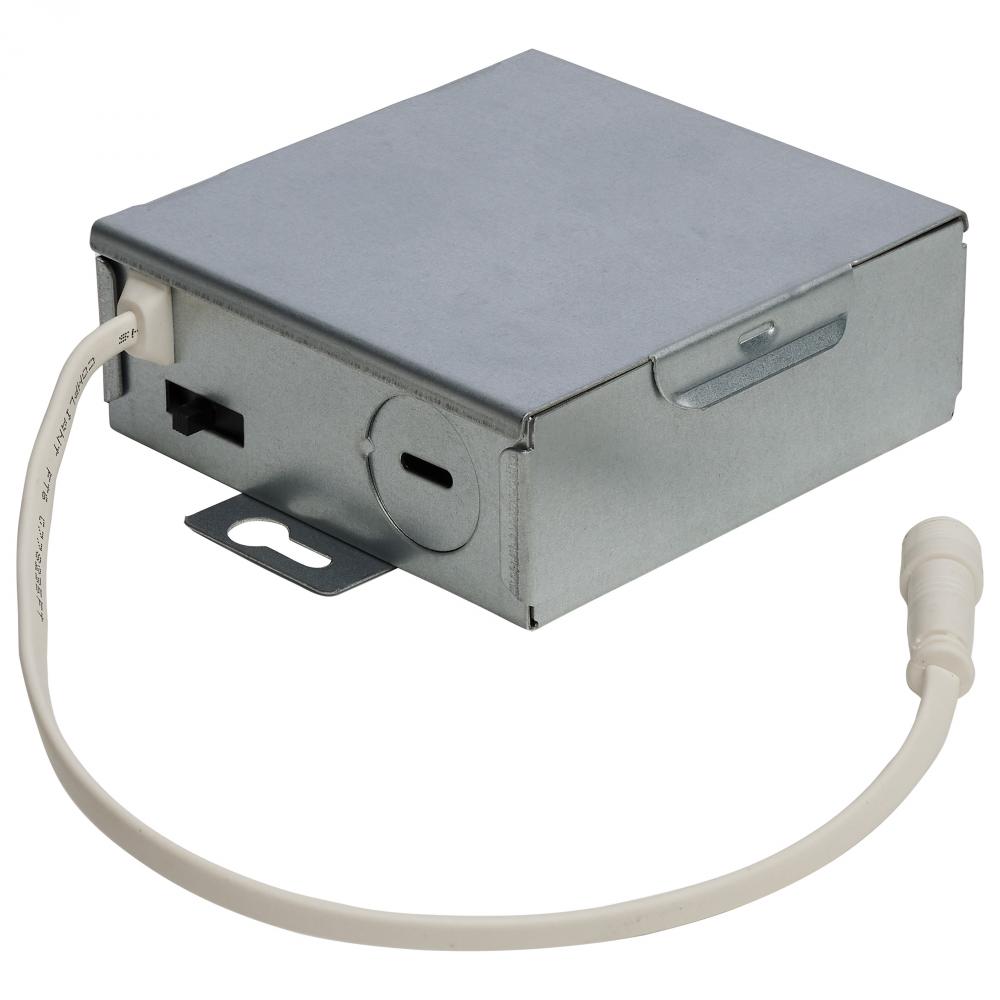

Has Driver:

Yes

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

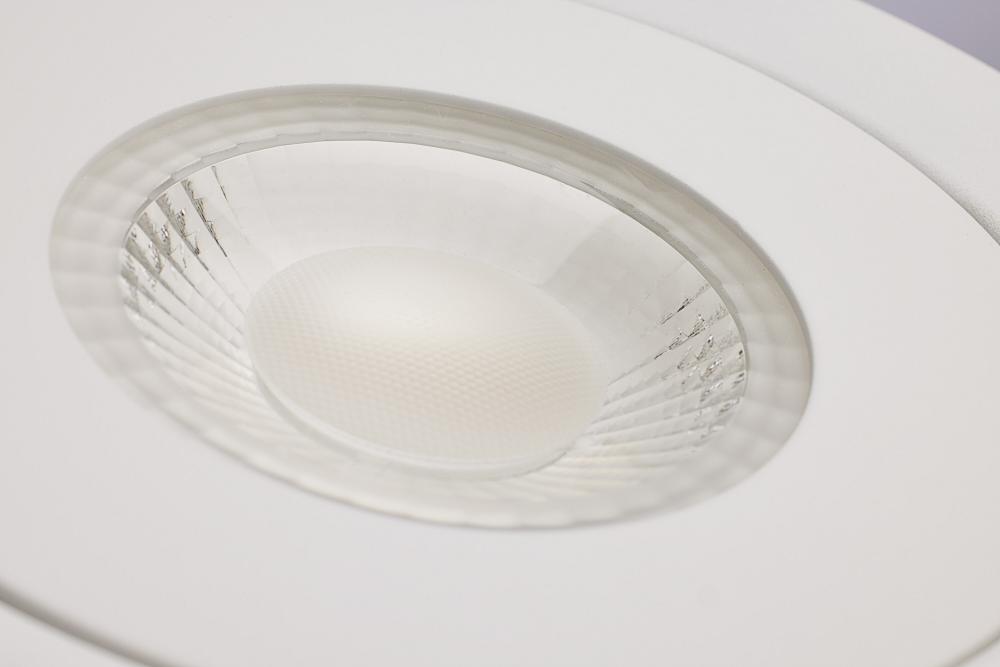

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO NUVO's S11881 6-inch Round Fire Rated Directional Downlight is the perfect solution to increase safety and offer focused light. Designed to provide exceptional illumination, this downlight also provides two hours of protection in the event of a f

Material:

Aluminum

Max Drywall Thickness:

1 in.

Mounting Procedure:

Recessed Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Rec Spacing Between Fixtures:

3 ft. to 4 ft.

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's Fire Rated Directional Downlights are the perfect solution to increase safety and offer focused light. Designed to provide exceptional illumination, these downlights also provide two hours of protection in the event of a fire, Improve illu

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

15WLED/DW-FR/6/CCT-SEL/RND/DIR

Sloped Ceiling Compatible:

Yes

Specification Notes:

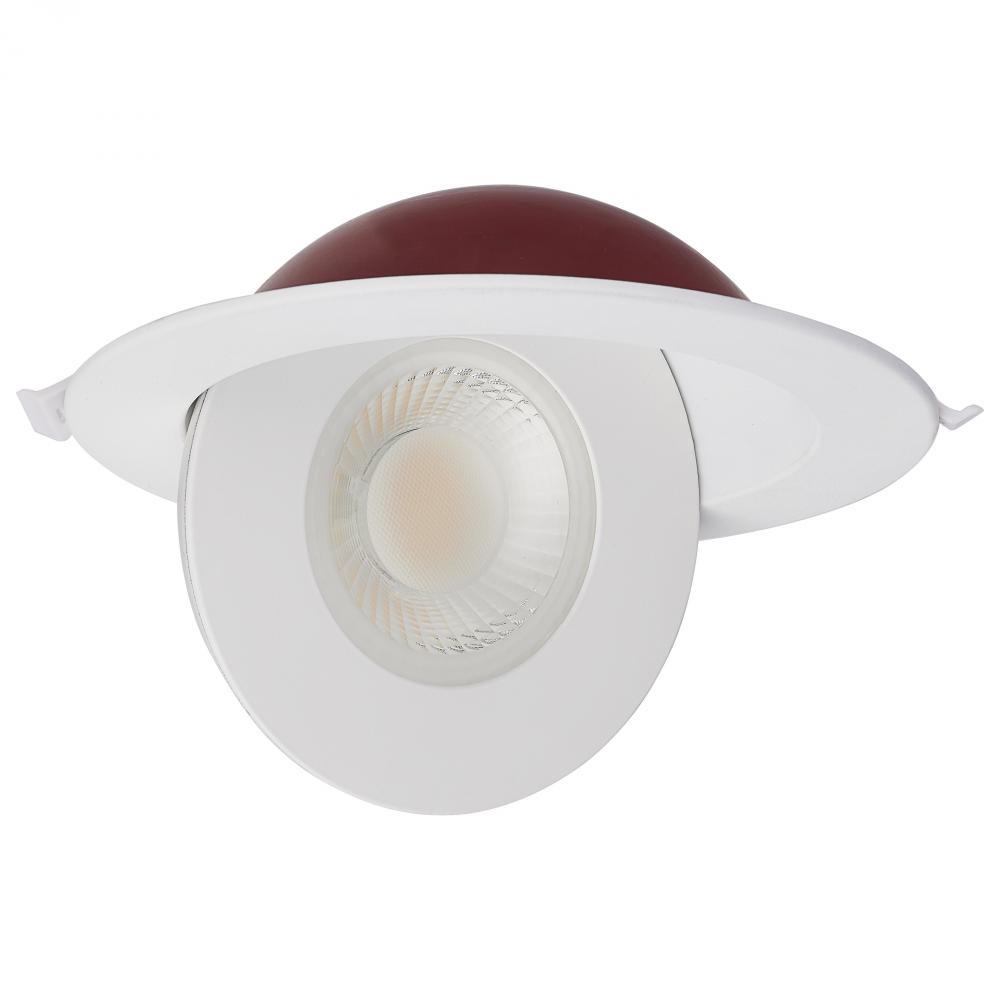

Rotation Angle 360 degrees; Tilt Angle 80 degrees

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<30%

Trim Color:

White

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

1.57

Manufacturer Info

Manufactured By:

Satco Products Inc.
